WD BALDWIN 4-6-0T
[PRINT FRIENDLY]

An urgent need for narrow gauge locos to operate the lines behind the trenches in WW1 led the Railways Operating Division (ROD) to source locos from America as well as Britain. Both Baldwin and Alco produced designs and the Baldwin 4-6-0 pannier tank was made in huge numbers. Dispersal sales after the war saw them scattered around the globe with a number ending up in the UK on lines such as the Welsh Highland, Ashover, Snailbeach and Glyn Valley Tramway, many having been acquired by Colonel Stephens for his narrow gauge empire!

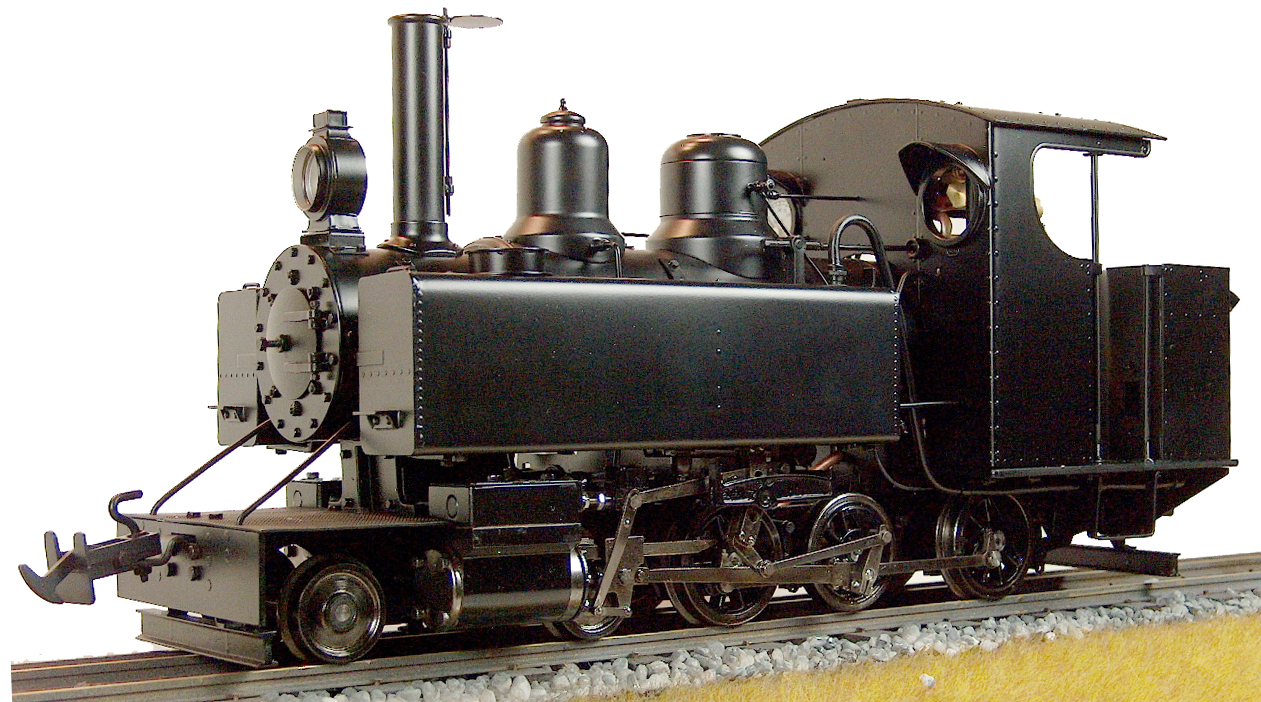

The model is internally gas fired and is constructed from etched brass and stainless steel. The model is only available in manual control version. The standard colour is satin black. Versions for 32mm and 45mm gauges are available. As the gas capacity is larger than the water capacity, a boiler top up system will be supplied. The boiler is fitted with a water gauge glass. The locomotive comes fitted with our standard square headed chopper couplings. The wheels are insulated as standard. The cab roof lifts up and tilts sideways to give easy access to the cab interior.
Specifications
Scale / Gauge
Construction
Mini. Radius
Length
Width
Height
1:19 / 45 mm
Brass & Stainless Steel
39 in. (1 M)
14 in. (355 mm)
4.2 in. (106 mm)
6 in. (152 mm)
Features
Butane fired
Piston valve
60 PSI working pressure
Reverse by lever in the cab
Simplified Walschaerts valve gear
Safety valve
Pressure gauge
Water level check valve
Lubricator drain valve
Models

S19-1

WD Baldwin 4-6-0T
45mm Gauge
Butane Fired, Live Steam


S19-2

WD Baldwin 4-6-0T
32mm Gauge
Butane Fired, Live Steam



†PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
