LMS/BR 4-6-0 BLACK 5, LIVE STEAM
[PRINT FRIENDLY]

The London Midland and Scottish Railway’s Class 5 4-6-0, almost universally known as the Black Five was introduced by William Stanier in 1934 and 842 were built between then and 1951. Members of the class survived to the last day of steam on British Railways, in 1968, and eighteen are preserved.

The Black Fives were a mixed traffic locomotive, a “do-anything go-anywhere” type, designed by Stanier, who had previously been with the GWR. In his early LMS days he acquiesced with the completion of a small number of 2-6-0s already under construction. But Stanier realised that there was a need for larger locomotives. These were to be the LMS’s copy of the GWR Halls. They shared similar cylinder arrangement (two outside), internal boiler design and size and 6 foot driving wheel diameters.

The model is in 1:32 scale and 45mm gauge and features all metal construction with three versions. The chassis is constructed from stainless steel. The boiler is copper, the cab and tender are constructed from etched brass. It will provide many years of enjoyment. The model will run round radius 3 curves and is happy on code 332 or code 250 tracks.
Specifications
Scale / Gauge
Construction
Mini. Radius
Length
Width
Height
1:32 / 45 mm
Brass & Stainless Steel
4 ft. 6 in.
23.5 in. (610 mm)
3.5 in. (90 mm)
5 in. (120 mm)
Features
Butane fired
60 psi Working pressure
Walschaerts valve gear
Two cylinders
Safety valve
Pressure gauge
Water gauge
Reverse lever
Lubricator
Gas tank in tender (water bath)
Water hand pump with check valve
Axle water pump with bypass valve
Models

S32-5

LMS Black No. 5091
Butane Fired, Live Steam


S32-6

BR Black w/ Early Emblem
No. 45080
Butane Fired, Live Steam

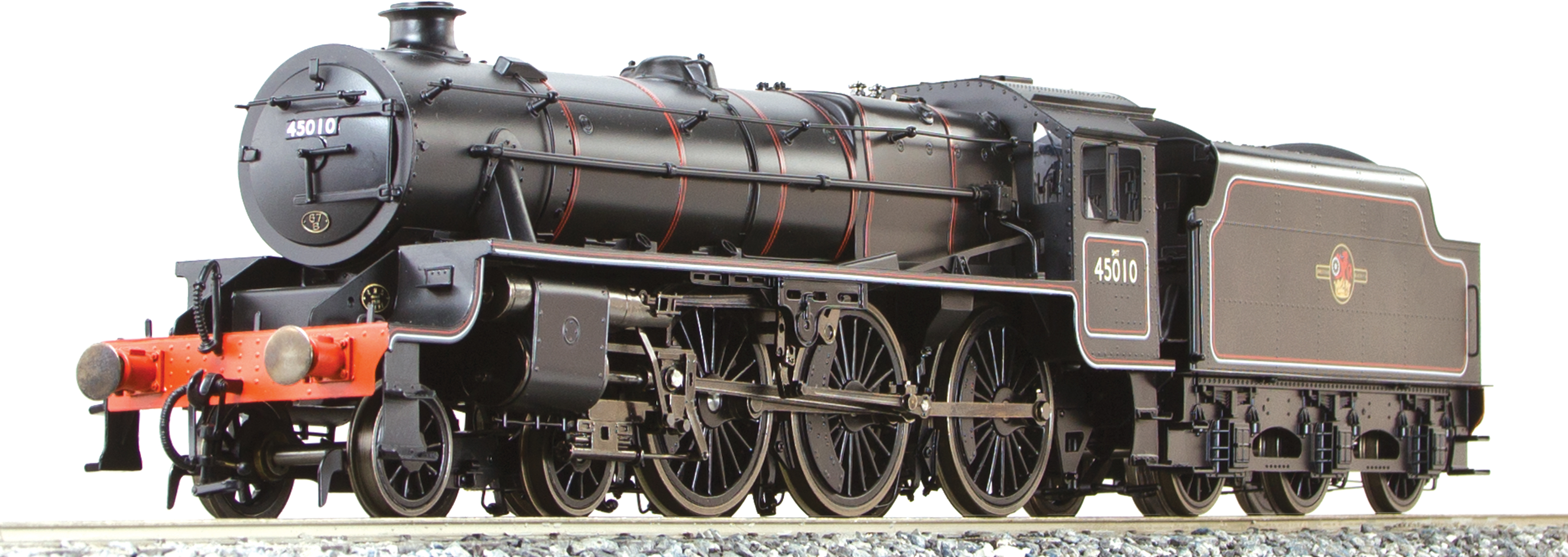

S32-7

BR Black w/ Late Crest
No. 45010
Butane Fired, Live Steam


†PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
